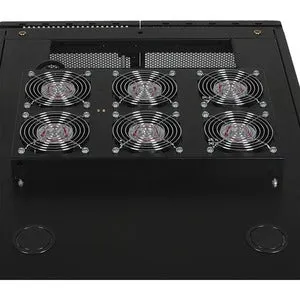

The Tripp Lite by Eaton SmartRack Roof-Mounted Fan Panel is an essential solution for enhancing airflow and cooling performance in rack enclosure server cabinets. This high-performance fan panel is designed to significantly improve ventilation, ensuring your valuable equipment stays at optimal temperatures even during peak operation. With its robust engineering and user-friendly installation features, this fan panel is a must-have for IT professionals and data center managers.

• High-Performance Cooling: Equipped with six powerful 208-240V fans, the Tripp Lite SmartRack Roof-Mounted Fan Panel delivers an impressive airflow of 420 CFM, ensuring efficient cooling for your rack-mounted equipment.
• Toolless Installation: Featuring toolless mounting hardware, this fan panel allows for quick and hassle-free installation, saving you time and effort during setup.
• Durable Construction: Constructed from cold rolled steel with a sleek black finish, this fan panel is designed for longevity and resilience, making it suitable for various environments.
• Cable Management: Built-in cable access holes provide convenient routing of cables through the fan roof panel, helping to maintain organization and reduce clutter within your server cabinet.
• Versatile Compatibility: Supports 208-240V, 50/60 Hz AC input, making it compatible with most standard rack systems and ensuring it meets your cooling needs.

Technical Details of the Product

• Model: SRXFANROOF
• Fan Type: High-performance fans (6 units)
• Voltage: 208-240V
• Airflow: 420 CFM
• Material: Cold rolled steel
• Finish: Black
• Input Frequency: 50/60 Hz AC

How to Install

Installing the Tripp Lite SmartRack Roof-Mounted Fan Panel is a straightforward process:

1. Preparation: Gather the necessary tools and clear the area around your rack enclosure.
2. Align the Panel: Position the fan panel on top of the rack enclosure, ensuring that it aligns with the mounting points.
3. Use Toolless Mounting Hardware: Secure the panel using the provided toolless mounting hardware. Align the clips and press them into place until they click securely.
4. Connect Power: Plug the C14 inlet into an appropriate power outlet to begin operation.
5. Manage Cables: Use the built-in cable access holes to route and organize any cables, ensuring a clean and efficient setup.

Frequently Asked Questions

1. What is the airflow capacity of the fan panel?

The Tripp Lite SmartRack Roof-Mounted Fan Panel has an airflow capacity of 420 CFM, providing effective cooling for your equipment.

2. Is the installation process complicated?

No, the fan panel features toolless mounting hardware, allowing for quick and easy installation without the need for additional tools.

3. What voltage does the fan panel support?

The fan panel supports 208-240V AC input, making it compatible with most standard rack systems.

4. Can this fan panel be used in various environments?

Yes, its durable cold rolled steel construction and black finish allow it to be used in a variety of environments, from data centers to server rooms.

5. Does it help with cable management?

Yes, the fan panel includes built-in cable access holes, which facilitate neat and organized cable routing, reducing clutter in your server cabinet.
